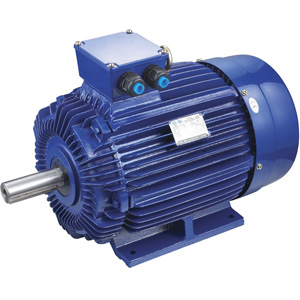

Low Voltage 3 Phase Motor

Class F insulation.
Low vibration °„ precision process, energy balance. Class N vibration, IEC34-14
3 phase motor is designed against international characteristics and quality spec. Low noise, long validity motor is the most economic tools.
Design standard: IEC °B JIS, low vibration, low noise.
Class F insulation, class B temperature rise °A S.F. 1.0 up, full load temperature low, long insulation validity.
Protection enclosure IP54 °A dust resistant °B water resistant. Approved by international spec and more safety.
Congruent safety spec. CE mark is available for the same spec at Europe market
°@Product Serial°G AYHL / AYUL Serial Specification
Power (HP) 1/4~125UP
Poles (P)°G 2°B4°B6
Valtage(V)°G 600•H§U
Frequency (HZ)°G 50°B60
Frame Size°G 63~250
Protection°G IP54
Insulation Class°G
Frame Size 63~112M E class
Frame Size 132S~180M B class
Frame Size 180L~250M F class
Manufactured per IEC standard size
The characteristics are conformed to CNS2934 C4088.
